Arvind PEB Structure

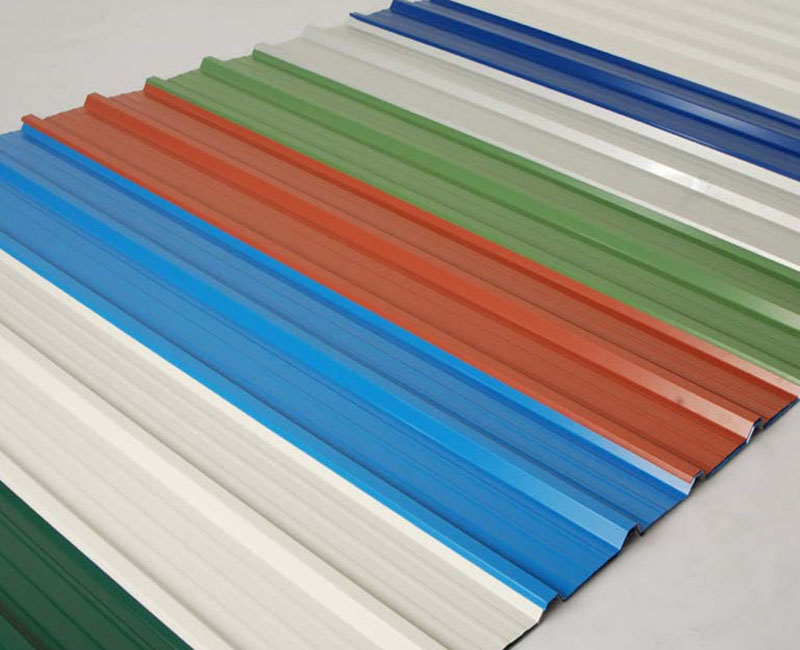

Roof & Wall Sheeting

The top quality and excellent performance offered by these systems ensure better over lap, extra strength, weather tightness, good aesthetics, corrosion resistance, and low maintenance cost.

Roofing and cladding systems can be fixed over purling or runners using self drilling fasteners including neoprene/EPDM/bitumen washers on the sheet.

Technical Specifications

Pre-Painted Galvanized Steel Sheets

Hot dipped galvanized pre-painted steel sheet

Zinc coating	Z 12
Coating	Regualr modified polyester painting
Painting thickness (Top)	18 microns
Painting thickness (bottom)	5~7 microns epoxy primer service coat
Surface paint reflection	Matt finish (Optional-Gloss)
Tensile strength	400 overN/mm2 min
Application	Structural quality JIS G3312, SGCD 400, JIS G3302 SGCD 400

Pre-Painted Alu-Zinc Steel Sheets

Pre-painted Alu-Zinc alloy coated steel sheet (55% Aluminium 43% Zinc 1.6% Silicons)

Zinc coating	AZ 150
Coating	Regualr modified polyester painting
Painting thickness (Top)	25 microns
Painting thickness (bottom)	5~7 microns epoxy primer service coat
Surface paint reflection	Matt finish (Optional-Gloss)
Tensile strength	570 N/mm2 min
Application	Structural quality JIS G3321 according to ASTM A-792 grade 550

Zinc Alum Steel Sheet (Galvalume) Non-colour

(55% Aluminium 43% Zinc 1.6% Silicon)

Zinc coating	AZ70 (Option AZ100 AZ150)
Tensile strength	570 N/mm2
Application	Structural quality JIS G3321 according to ASTM A-792 grade 550

Total Coating Thickness (TCT)	Sheet Width (Standard)	Profiled Effective Width
Total Coating Thickness (TCT)	Sheet Width (Standard)	Roofing	Cladding	Corruatigon	Tile
0.61 ~ 1.00 mm* 0.60 mm* 0.55mm* 0.50 mm 0.47 mm 0.45 mm* 0.40 mm 0.35 mm 0.30 mm 0.27 mm 0.25 mm	914 mm 1219 mm	760 mm 950 mm	732 mm 976 mm	762 mm 1086.6 mm	621 mm 1035 mm

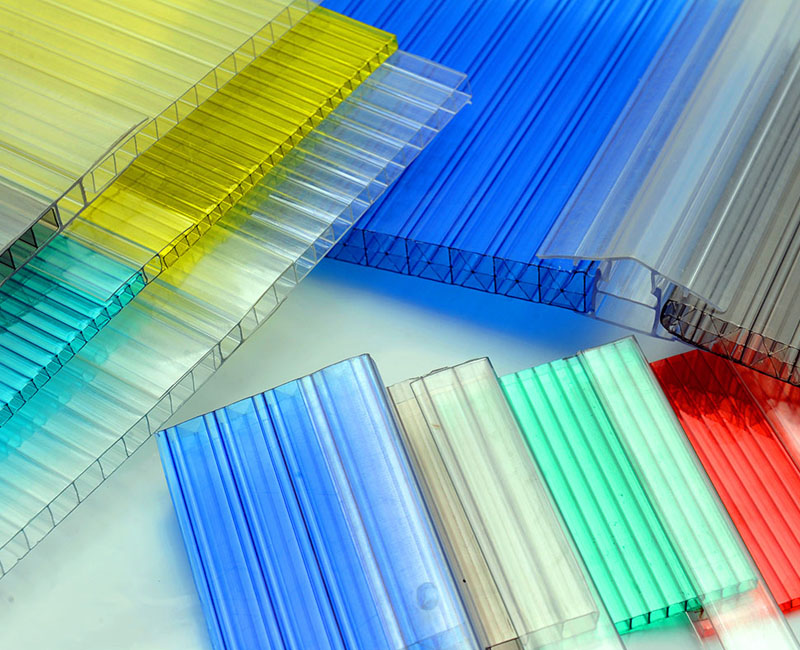

Polycarbonate sheet

Polycarbonate sheets are flat panels made from a synthetic resin that is known for its ability to be easily shaped and molded. Polycarbonate sheets are produced in multi-wall and solid constructions, and the material itself is translucent, lightweight, and extremely durable.

Polycarbonate Transparent sheets are made out of finest Lexan polycarbonate sheets having excellent light transmission between 50-92% depending on thickness. These sheets are available in the required length and match the profile of roof and wall sheeting.

FAQ

1. What is roof and wall sheeting in PEB construction?

Roof and wall sheeting in Pre-Engineered Buildings (PEBs) refers to the cladding material used to cover the roof and walls of the structure. It provides protection against weather elements, enhances structural integrity, and contributes to the overall aesthetics of the building.

2. Why is roof and wall sheeting important in Pre-Engineered Buildings?

Roof and wall sheeting plays a crucial role in PEBs as it acts as a protective layer, shielding the building from rain, wind, heat, and other external factors. It also helps in maintaining the structural stability, energy efficiency, and visual appeal of the PEB.

3. What are the advantages of using roof and wall sheeting in PEB construction?

Using roof and wall sheeting in PEB construction offers several advantages. It provides excellent weather resistance, enhances thermal insulation, improves energy efficiency, offers design flexibility, ensures quick and efficient installation, and contributes to the overall durability and longevity of the PEB.

4. What are the different types of roof and wall sheeting options available for PEBs?

There are various roof and wall sheeting options available for PEBs, including metal panels, composite panels, insulated panels, standing seam systems, and corrugated sheets. These options come in different profiles, colors, and finishes to suit the specific requirements and design aesthetics of the PEB project.

5. How does roof and wall sheeting contribute to the overall aesthetics of a PEB?

Roof and wall sheeting options in PEBs offer a wide range of design possibilities. With various colors, textures, and finishes available, they can enhance the visual appeal and architectural aesthetics of the building, creating a modern and attractive appearance.

6. What factors should be considered when selecting roof and wall sheeting for PEB projects?

When selecting roof and wall sheeting for PEB projects, factors such as climate conditions, required insulation values, building codes and regulations, budget constraints, maintenance requirements, and design preferences should be considered. It is important to choose sheeting materials that align with these factors to ensure optimal performance and long-term satisfaction.

7. How does roof and wall sheeting contribute to the energy efficiency of PEB structures?

Roof and wall sheeting with proper insulation properties can significantly improve the energy efficiency of PEB structures. Insulated panels, for example, provide enhanced thermal insulation, reducing heat transfer and minimizing the need for excessive heating or cooling. This leads to lower energy consumption and cost savings.

8. Can roof and wall sheeting be customized to match specific design requirements?

Yes, roof and wall sheeting can be customized to match specific design requirements. They are available in a variety of profiles, finishes, and colors, allowing for customization based on the architectural vision and design intent of the PEB project.

9. What are the installation procedures for roof and wall sheeting in PEB construction?

The installation procedures for roof and wall sheeting in PEB construction involve careful planning, proper preparation of the building envelope, precise alignment, and secure fastening of the sheeting panels. Following manufacturer guidelines, professional installation teams ensure a seamless and efficient installation process.

10. What are the maintenance requirements for roof and wall sheeting in PEBs?

Roof and wall sheeting in PEBs generally require minimal maintenance. Regular inspections, cleaning of debris, and addressing any damages or leaks promptly are recommended. It is advisable to follow the manufacturer's maintenance guidelines and consult professionals for routine inspections and maintenance tasks.

11. How does roof and wall sheeting enhance the weather resistance of PEB structures?

Roof and wall sheeting act as a protective barrier against weather elements such as rain, wind, snow, and UV radiation. High-quality sheeting materials, combined with proper installation techniques, provide excellent weather resistance, preventing water infiltration, wind uplift, and corrosion, ensuring the durability and longevity of the PEB structure.

12. What are the fire resistance properties of roof and wall sheeting in PEBs?

Roof and wall sheeting materials used in PEBs can have different fire resistance properties, depending on their composition and coatings. Certain sheeting options, such as fire-rated metal panels or insulated panels with fire-resistant cores, offer enhanced fire protection, minimizing the spread of flames and contributing to the overall fire safety of the building.

13. Can roof and wall sheeting be used for both new construction and retrofit projects?

Yes, roof and wall sheeting can be used for both new construction and retrofit projects. Whether it is for constructing a new PEB or upgrading an existing structure, there are sheeting options available to suit the specific requirements of each project.

14. What is the lifespan of roof and wall sheeting in PEBs?

The lifespan of roof and wall sheeting in PEBs can vary depending on factors such as material quality, maintenance practices, and environmental conditions. However, high-quality sheeting materials, when properly maintained, can have a lifespan of 20 to 50 years or more, ensuring long-term durability and performance.

15. How does roof and wall sheeting contribute to the structural stability of PEB buildings?

Roof and wall sheeting in PEB buildings not only provide protection and insulation but also contribute to the structural stability of the entire building system. The sheeting panels, when properly installed and fastened, act as bracing elements, enhancing the overall rigidity and strength of the PEB structure.

16. Are there any sustainable or eco-friendly options available for roof and wall sheeting in PEB construction?

Yes, there are sustainable and eco-friendly options available for roof and wall sheeting in PEB construction. These options include recyclable materials, energy-efficient insulated panels, and coatings with low VOC (volatile organic compounds) content, reducing environmental impact and promoting sustainability.

17. What are the different finishes and colors available for roof and wall sheeting in PEBs?

Roof and wall sheeting options in PEBs come in a wide range of finishes and colors. Common finishes include smooth, textured, and matte finishes, while color options include standard colors, custom colors, and metallic finishes. This allows for design flexibility and the ability to match the desired aesthetics of the PEB project.

18. Can roof and wall sheeting be soundproof or provide acoustic insulation in PEBs??

Certain roof and wall sheeting options can provide acoustic insulation and contribute to soundproofing in PEBs. Insulated panels with appropriate acoustic properties can help reduce noise transmission, making the building more comfortable and suitable for specific applications such as offices, educational institutions, or industrial facilities.

19. What are the warranty options for roof and wall sheeting in PEB projects?

The warranty options for roof and wall sheeting in PEB projects may vary depending on the manufacturer and the specific sheeting product. It is advisable to consult with the sheeting supplier or manufacturer to understand the available warranty options and the terms and conditions associated with them.

20. Can you provide examples of successful PEB projects that utilized roof and wall sheeting?

Certainly! We have successfully completed numerous PEB projects that utilized roof and wall sheeting. Some notable examples include industrial warehouses, commercial buildings, logistics centers, agricultural facilities, and sports complexes. These projects showcase the versatility and reliability of roof and wall sheeting in achieving functional and visually appealing PEB structures.
