Arvind PEB Structure

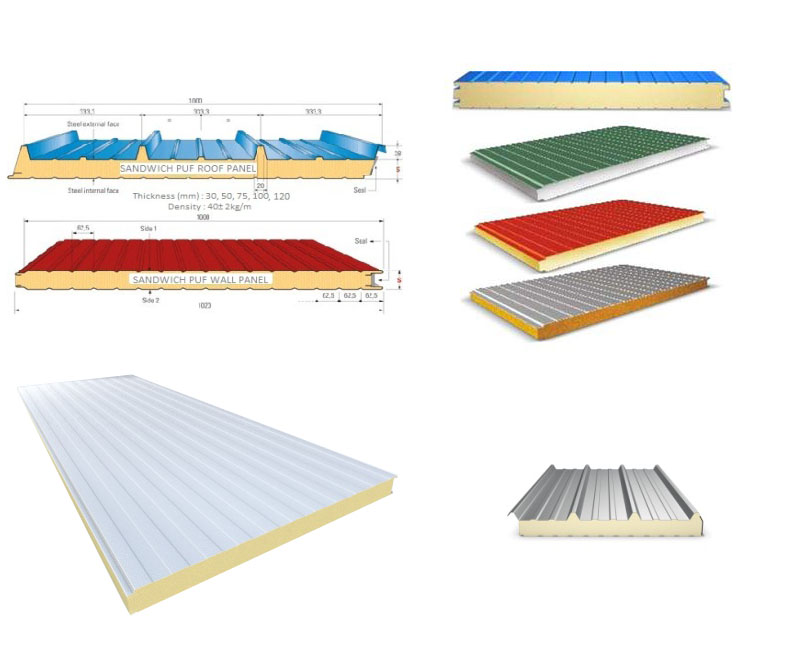

Puff Panel	Wall Panel	Roof Panel
Width	1000 mm	1000 mm
Length	Upto 12000 mm	Upto 12000 mm

Panel thickness available	30mm, 50mm, 75mm, 100mm
Panel width available	1070mm
Panel length available	2000mm-12000mm
Average Density	40± 2kg/m
Thermal Conductivity	0.024-0.03 W/m
Temperature range	-40+800C
Free from CFC	CFC free
Type of foam	B1, B2, B3, PIR
Heat transfer Co-Efficient	-0.022W/M2*k
Cubic Area Change	1%(-30 C – 100 C/96h)

FAQ

1. What are Puff Panels and why are they used in PEB construction?

Puff Panels, also known as insulated panels or sandwich panels, are composite building materials consisting of two outer metal sheets and an inner core of insulation material. They are used in PEB construction to provide superior thermal insulation, energy efficiency, and structural strength to the building envelope.

2. What are the advantages of using Puff Panels over traditional wall systems in PEB buildings?

Puff Panels offer several advantages over traditional wall systems in PEB buildings. They provide excellent thermal insulation, reducing heat transfer and energy consumption. Puff Panels are lightweight, easy to install, and offer faster construction times. They also have a high strength-to-weight ratio, providing structural stability and durability.

3. How do Puff Panels contribute to energy efficiency and cost savings in PEB structures?

Puff Panels contribute to energy efficiency in PEB structures by minimizing heat transfer through the building envelope. The insulated core of Puff Panels prevents thermal bridging and reduces the need for excessive heating or cooling. This leads to significant cost savings on energy bills and creates a comfortable indoor environment.

4. Are Puff Panels suitable for both residential and commercial PEB projects?

Yes, Puff Panels are suitable for both residential and commercial PEB projects. They can be used in a variety of applications, including warehouses, factories, office buildings, schools, hospitals, and residential homes. Puff Panels offer versatility in design, allowing for customization based on the specific requirements of the project.

5. What are the key features and properties of Puff Panels that make them ideal for PEB construction?

Puff Panels have several key features and properties that make them ideal for PEB construction. They have excellent thermal insulation properties, fire resistance, and sound absorption capabilities. Puff Panels are lightweight yet structurally strong, corrosion-resistant, and have a long lifespan. They also offer design flexibility, allowing for various colors, finishes, and profiles.

6. Can Puff Panels withstand extreme weather conditions and provide superior protection?

Yes, Puff Panels are designed to withstand extreme weather conditions and provide superior protection. The outer metal sheets offer durability and resistance to weather elements such as rain, wind, and UV rays. The insulation core provides thermal resistance and helps regulate interior temperature, ensuring occupant comfort in various climates.

7. How do Puff Panels enhance the insulation and soundproofing capabilities of PEB buildings?

Puff Panels enhance insulation and soundproofing capabilities in PEB buildings due to their composite structure. The insulation core reduces heat transfer, preventing thermal bridging and maintaining a comfortable indoor environment. Additionally, the insulation core absorbs sound waves, reducing noise transmission and enhancing acoustic performance within the building.

8. Are Puff Panels resistant to fire, moisture, pests, and corrosion?

Yes, Puff Panels are designed to be resistant to fire, moisture, pests, and corrosion. The outer metal sheets provide a protective barrier against fire hazards and are typically coated with anti-corrosive finishes. The insulation core is made of materials that are resistant to moisture absorption and pests, ensuring long-term performance and durability.

9. Can Puff Panels be customized to meet specific design requirements and aesthetic preferences?

Yes, Puff Panels can be customized to meet specific design requirements and aesthetic preferences. They are available in various thicknesses, widths, and lengths to suit different construction needs. Puff Panels can also be customized with different coatings, colors, and textures to achieve the desired visual appearance and architectural style.

10. What is the lifespan of Puff Panels in PEB construction and do they require regular maintenance?

The lifespan of Puff Panels in PEB construction can vary depending on factors such as the quality of materials, installation, and maintenance. However, properly installed and maintained Puff Panels can have a lifespan of 30 years or more. Regular maintenance, including inspections and cleaning, can help prolong the lifespan and ensure optimal performance of the panels.

11. Are Puff Panels eco-friendly and sustainable building materials?

Yes, Puff Panels are considered eco-friendly and sustainable building materials. The insulation core often consists of environmentally friendly materials, such as polyurethane (PUR) or polyisocyanurate (PIR) foam, which have low global warming potential. Puff Panels also contribute to energy efficiency, reducing the carbon footprint of buildings and promoting sustainable construction practices.

12. How does the installation process of Puff Panels differ from other wall systems in PEB construction?

The installation process of Puff Panels differs from other wall systems in PEB construction due to their prefabricated nature. Puff Panels are manufactured off-site and delivered as ready-to-install units. They are attached to the structural framework of the building using fasteners or adhesives, ensuring a precise fit and minimizing on-site construction time and labor requirements.

13. What are the cost considerations associated with using Puff Panels in PEB projects?

The cost considerations associated with using Puff Panels in PEB projects include the initial material and installation costs. While Puff Panels may have a higher upfront cost compared to some traditional wall systems, their energy-saving properties can lead to long-term cost savings on heating and cooling expenses. Additionally, the faster installation process can help reduce overall construction time and labor costs.

14. Are there any certifications or industry standards that Puff Panels comply with?

Yes, Puff Panels can comply with various certifications and industry standards, such as ISO 9001 for quality management systems and ISO 14001 for environmental management systems. They may also meet fire safety standards, such as ASTM E84 or UL 723, and thermal performance standards, such as ASTM C518 or EN 12667. Manufacturers can provide specific information on certifications and compliance with relevant standards.

15. Can Puff Panels be used for both interior and exterior applications in PEB buildings?

Yes, Puff Panels can be used for both interior and exterior applications in PEB buildings. They are commonly used as wall and roof panels, providing insulation and weather protection for the building envelope. Puff Panels can also be used for interior partitions, ceilings, and cold storage applications, offering consistent thermal performance throughout the structure.

16. What are the design options and finishes available for Puff Panels?

Puff Panels offer a range of design options and finishes to enhance the aesthetics of PEB buildings. They are available in different colors, profiles, and textures, allowing for creative design possibilities. Common finishes include smooth, embossed, or corrugated surfaces, which can be combined to achieve desired visual effects and architectural styles.

17. Are there any specific considerations for integrating Puff Panels with other building components?

Yes, when integrating Puff Panels with other building components, it is important to consider factors such as compatibility, structural support, and weatherproofing. Proper coordination with the building's structural engineers and architects is crucial to ensure seamless integration and optimize the overall performance of the PEB structure.

18. How do Puff Panels contribute to the overall strength and structural integrity of PEB buildings?

Puff Panels contribute to the overall strength and structural integrity of PEB buildings by providing a rigid, load-bearing element in the building envelope. The combination of the outer metal sheets and the insulation core creates a composite structure that enhances the building's resistance to external forces, such as wind and seismic loads, ensuring structural stability and safety.

19. What are the warranty and after-sales support options available for Puff Panels?

Warranty and after-sales support options for Puff Panels may vary among manufacturers. It is recommended to consult with the specific manufacturer or supplier to understand the warranty coverage, maintenance guidelines, and available support in case of any issues or concerns with the Puff Panels.

20. Where can I find more information about Puff Panels and their applications in PEB construction?

For more information about Puff Panels and their applications in PEB construction, you can visit our company website or contact our customer support team. Additionally, our website may provide case studies, technical specifications, and other resources that can help you gain a deeper understanding of Puff Panels and their benefits in PEB projects.
